The dashboard will contain the details of the different tasks that are scheduled for the chosen date. For there to be data displayed however, the user should have already started some tasks. In case there are none, here is the guide on how to create your first order, and here is the guide on how to start an order.

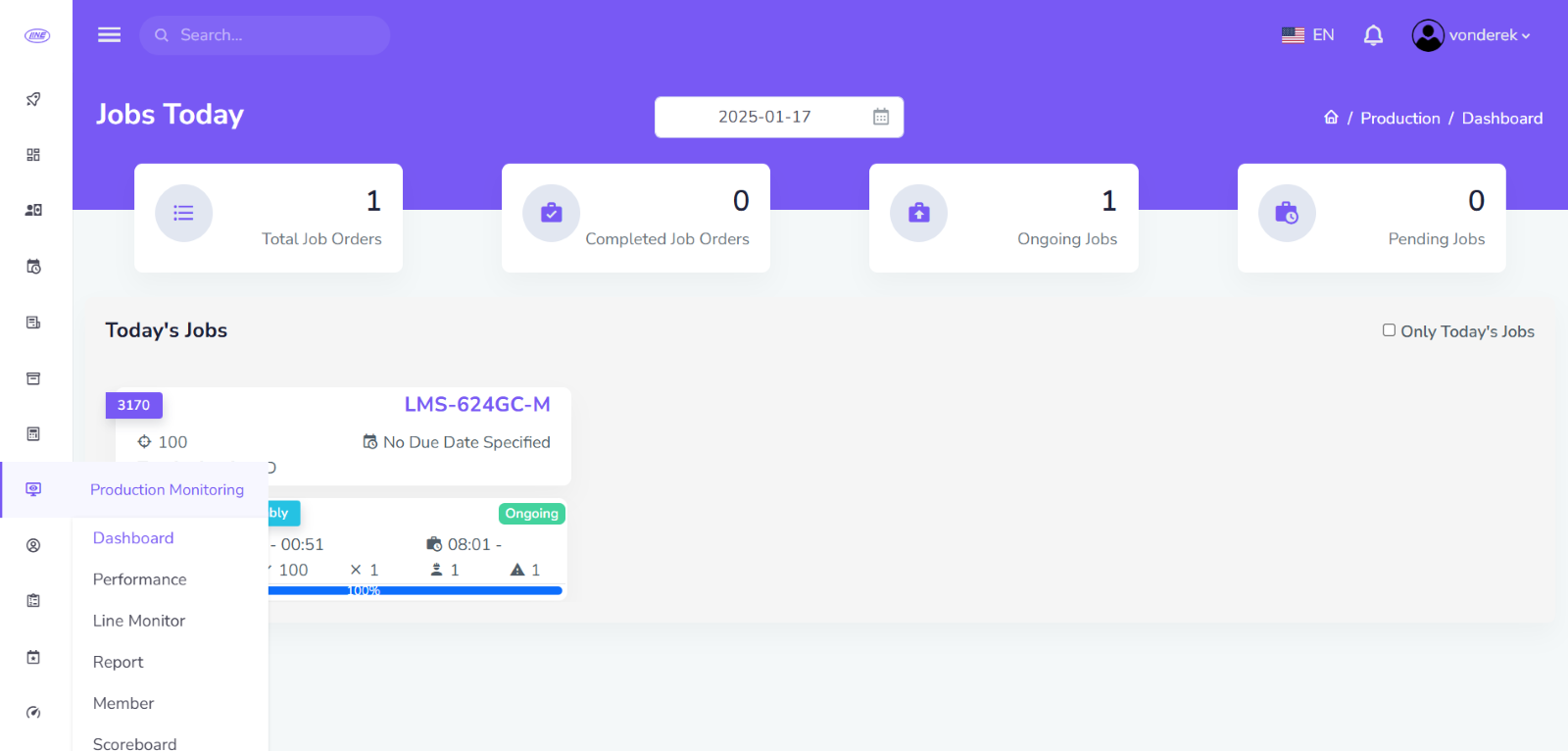

To access the dashboard, open the side navigation and look for Dashboard under Production Monitoring

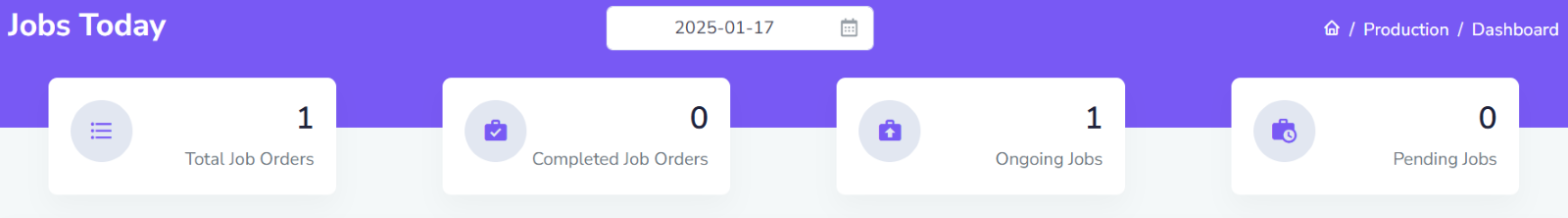

The dashboard will contain various details regarding the production that is scheduled

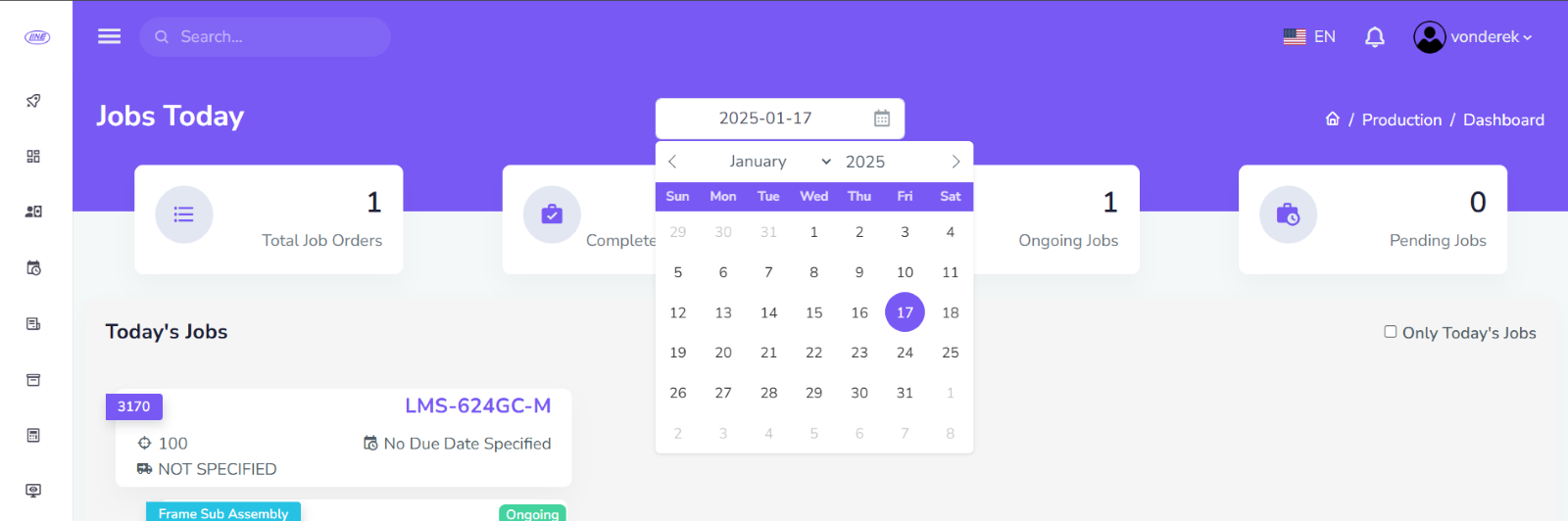

Users can change the date by clicking on the date display and choosing a different date on the calendar. This will change which day’s schedule will be shown

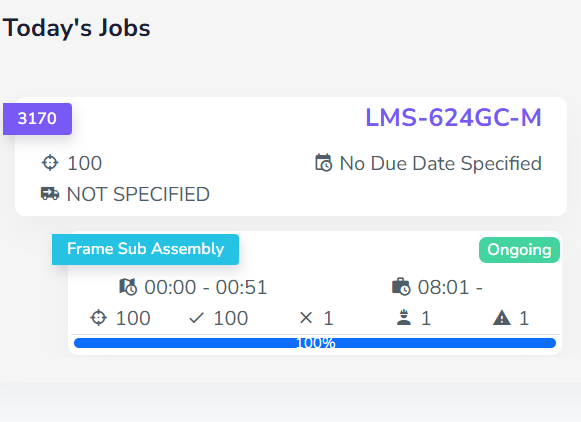

Users can check the details of the scheduled Jobs of the day here. Hovering the details will show you a tooltip which determines what they are. Listed down below are the said details
- Model (From left to right: target quantity , due date, destination)
-
Assembly (From left to right: Target Schedule, Actual Schedule, Target Quantity, Good units produced, Reject units produced, Members, Downtimes)

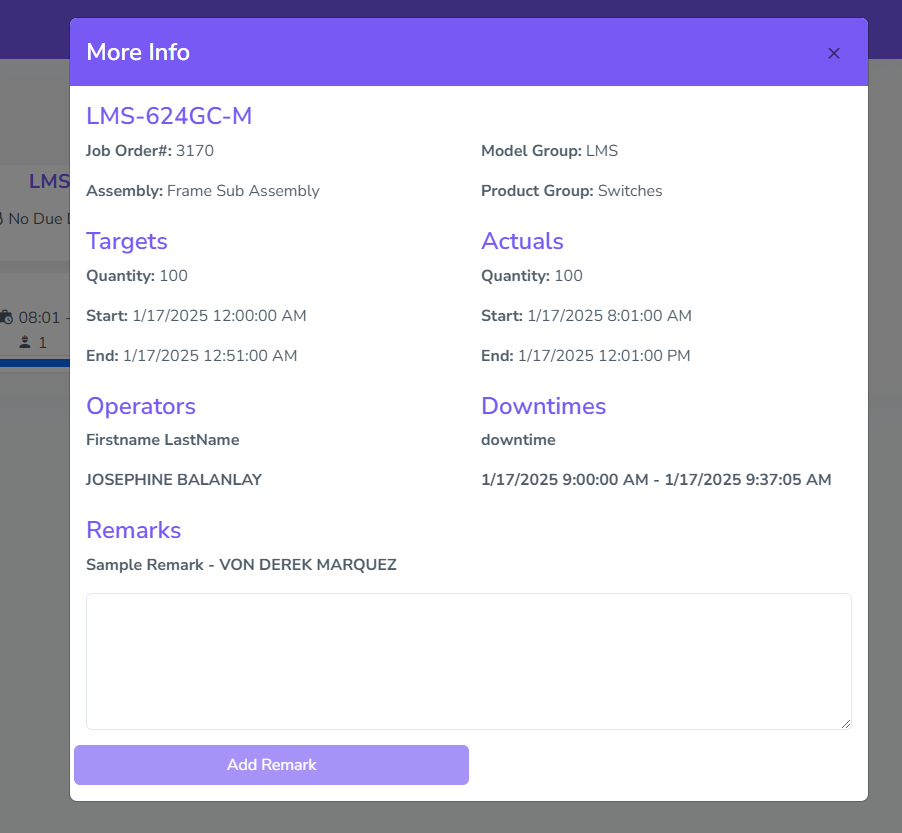

Users can click on a specific task to see more detailed information such as: (From top left to bottom right) Job Order number, Assembly Type, Model Group, Product Group, Target Quantity, Target Start, Target End, Actual Quantity, Actual Start, Actual End, Operators, Downtimes, and Remarks
